MXT-XTP

SAE100R16 Gates MEGASYS 1-Wire XtraTuff™

MXT-XTP has all the same features as MXT, but with the addition of the XtraTuff™ Plus cover that offers 25X the abrasion resistance of standard covers, as well as enhanced ozone resistance. MXT-XTP was designed to address our customers’ evolving application challenges. Using materials science and process innovation, combined with a patent-pending construction, Gates offers a hydraulic solution that is lighter, stronger, and more flexible.

RECOMMENDED FOR High–pressure hydraulic oil lines. Meets SAE 100R16 dimensions and performance. Meets SAE 100R17 (6, 8, 10, and 12) dimension and performance. Meets SAE 100R2 performance. Meets SAE 100R19 (6, and 8) performance. MXT hose has smaller exterior dimensions, lower force to bend and significantly tighter bend radius than all SAE specs listed above.
TUBE Black, oil resistant, synthetic rubber (Nitrile).
REINFORCEMENT Patent–Pending, Gates–Engineered, high–tensile steel wire braid reinforcement.
COVER Black, oil, abrasion and weather resistant, synthetic rubber (nitrile), with color coded layline.
TEMPERATURE RANGE –40°F to +212°F (–40°C to +100°C).
COUPLING RECOMMENDATION -4 to -16 - G Series - MegaCrimp® Couplings

Part Description Quantity Price Hose ID Hose OD (mm) Max W.P. (psi) Roll/Reel Length (m) Stock
MXT-XTP-04
1/4 1-Wire 6000psi SAE100R16 XTRA TUFF PLUS COVER

$34.40

Ex-Gst
1/4
14
6000
168
In stock
MXT-XTP-06
3/8 1-Wire 4800psi SAE100R16 XTRA TUFF PLUS COVER

$42.28

Ex-Gst
3/8
17.1
4800
122
In stock
MXT-XTP-08
1/2 1-Wire 4000psi SAE100R16/R19 XTRA TUFF PLUS COVER

$46.13

Ex-Gst
1/2
20.2
4000
101
In stock
MXT-XTP-10
5/8 1-Wire 3625psi SAE100R16 XTRA TUFF PLUS COVER

$0.00

Ex-Gst
5/8
24
3625
67
Out of stock
MXT-XTP-12
3/4 1-Wire 3125psi SAE100R16/R17 XTRA TUFF PLUS COVER

$67.03

Ex-Gst
3/4
27.4
3125
67
In stock
MXT-XTP-16
1-0 1-Wire 2400psi SAE100R16 XTRA TUFF PLUS COVER

$0.00

Ex-Gst
1
35.1
2400
50
Out of stock

MXT-XTP

MXT-XTP has all the same features as MXT, but with the addition of the XtraTuff™ Plus cover that offers 25X the abrasion resistance of standard covers, as well as enhanced ozone resistance. MXT-XTP was designed to address our customers’ evolving application challenges. Using materials science and process innovation, combined with a patent-pending construction, Gates offers a hydraulic solution that is lighter, stronger, and more flexible.

RECOMMENDED FOR High–pressure hydraulic oil lines. Meets SAE 100R16 dimensions and performance. Meets SAE 100R17 (6, 8, 10, and 12) dimension and performance. Meets SAE 100R2 performance. Meets SAE 100R19 (6, and 8) performance. MXT hose has smaller exterior dimensions, lower force to bend and significantly tighter bend radius than all SAE specs listed above.
TUBE Black, oil resistant, synthetic rubber (Nitrile).
REINFORCEMENT Patent–Pending, Gates–Engineered, high–tensile steel wire braid reinforcement.
COVER Black, oil, abrasion and weather resistant, synthetic rubber (nitrile), with color coded layline.
TEMPERATURE RANGE –40°F to +212°F (–40°C to +100°C).
COUPLING RECOMMENDATION -4 to -16 - G Series - MegaCrimp® Couplings

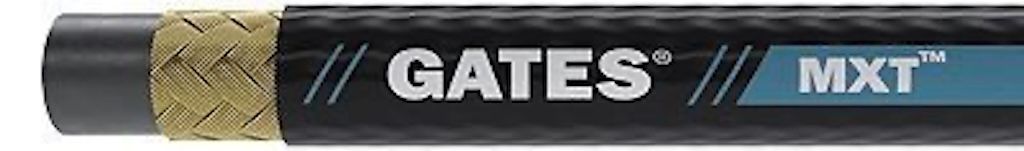

product image

Add feedback


Similar Products


CR2

Details

MXT

Details

MXT-XTP

Details

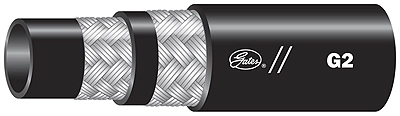

G2
