G1

SAE100R1 GATES 1-WIRE

RECOMMENDED FOR Medium–pressure hydraulic lines. Meets or exceeds the requirements of SAE 100R1, ISO 1436 1SNR1 and EN 853 1SN.
TUBE Black, oil resistant, synthetic rubber (Nitrile). See Hose Stock Characteristics.
REINFORCEMENT One braid of high–tensile steel wire.
COVER Black, oil and abrasion resistant, synthetic rubber (Nitrile and PVC).
TEMPERATURE RANGE –40°F to +212°F (–40°C to +100°C). For water emulsions see Temperature Limits Table.
COUPLING RECOMMENDATION -20 G Series - MegaCrimp® Couplings
-20 GS Series - GlobalSpiral™ Couplings
-24 to -32 GSP Series - GlobalSpiral™ Plus Couplings

Meets Flame Resistance Acceptance Designation "MSHA 2G".

Part Description Quantity Price Hose ID Hose OD (mm) Max W.P. (psi) Roll/Reel Length (m) Stock
G1-20
1-1/4 ID 1-Wire SAE100R1AT 925 PSI W.P.

$100.66

Ex-Gst
1 1/4
43.4
925
37
In stock
G1-24
1-1/2 1-Wire SAE100R1AT 725 PSI W.P.

$120.51

Ex-Gst
1 1/2
49.8
725
37
In stock
G1-32
2-0 1-Wire SAE100R1AT 600 P.S.I. W.P.

$148.90

Ex-Gst
2
63.8
600
37
In stock

G1

RECOMMENDED FOR Medium–pressure hydraulic lines. Meets or exceeds the requirements of SAE 100R1, ISO 1436 1SNR1 and EN 853 1SN.
TUBE Black, oil resistant, synthetic rubber (Nitrile). See Hose Stock Characteristics.
REINFORCEMENT One braid of high–tensile steel wire.
COVER Black, oil and abrasion resistant, synthetic rubber (Nitrile and PVC).
TEMPERATURE RANGE –40°F to +212°F (–40°C to +100°C). For water emulsions see Temperature Limits Table.
COUPLING RECOMMENDATION -20 G Series - MegaCrimp® Couplings
-20 GS Series - GlobalSpiral™ Couplings
-24 to -32 GSP Series - GlobalSpiral™ Plus Couplings

Meets Flame Resistance Acceptance Designation "MSHA 2G".

product image

Add feedback


Similar Products

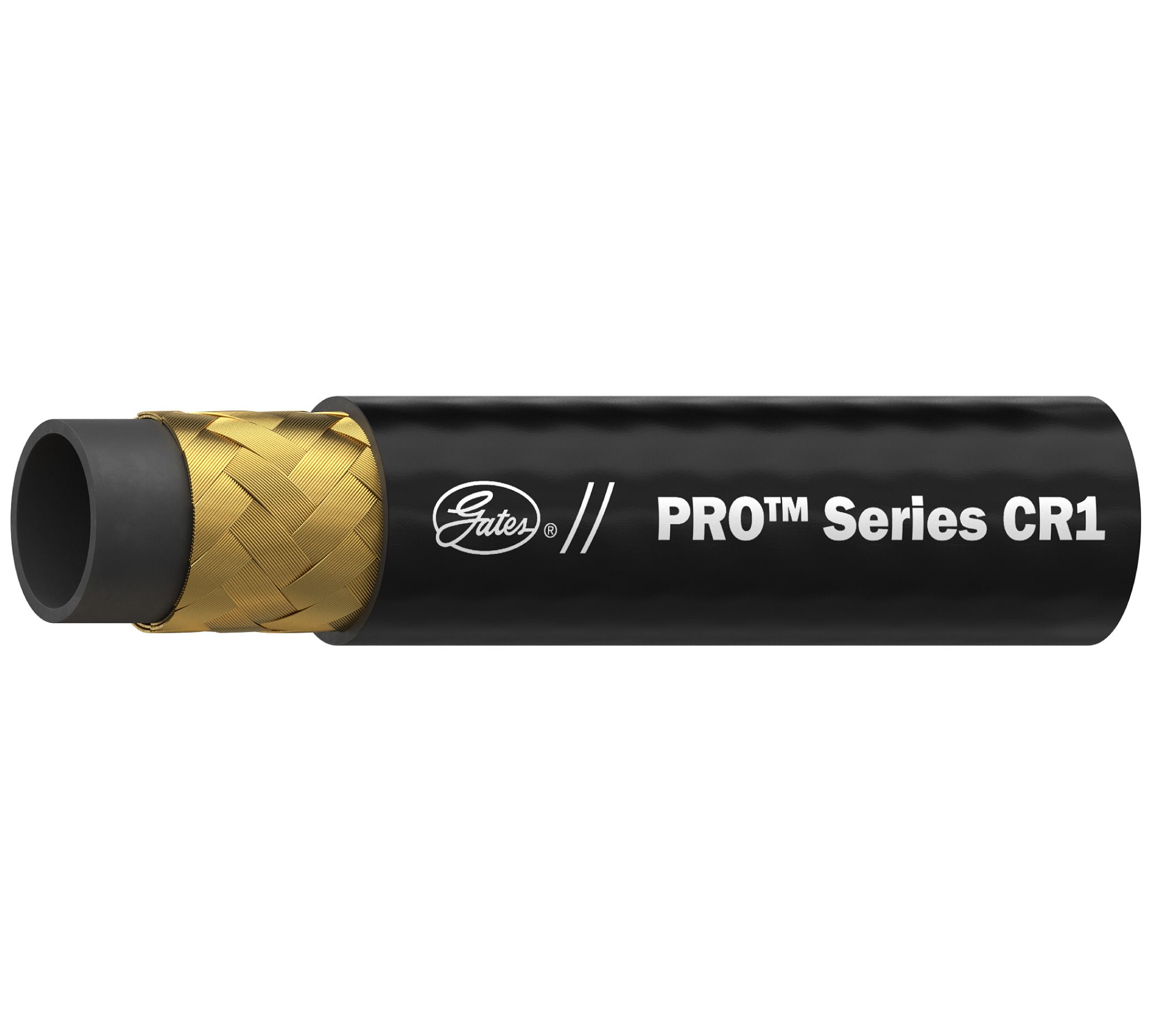

CR1

Details

G1

Details

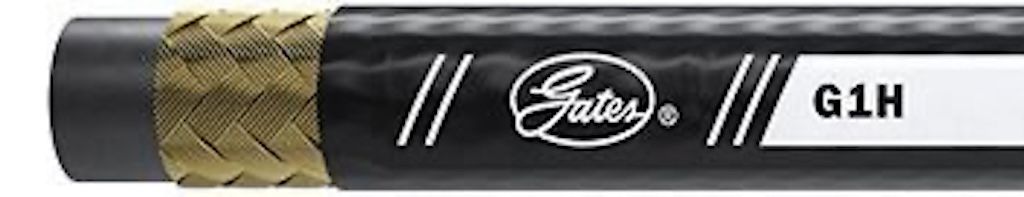

G1H

Details

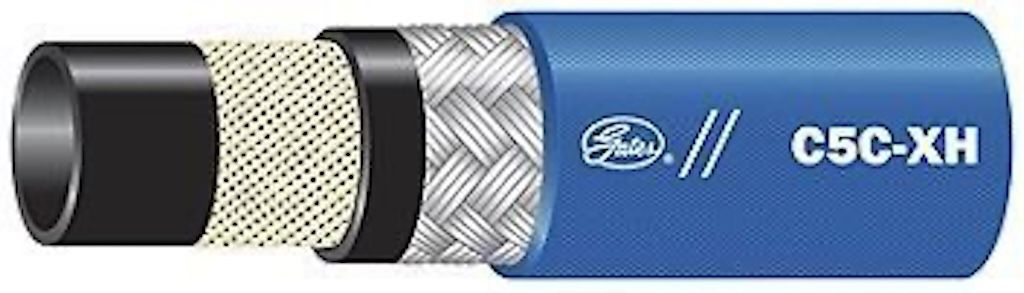

C5CXH
